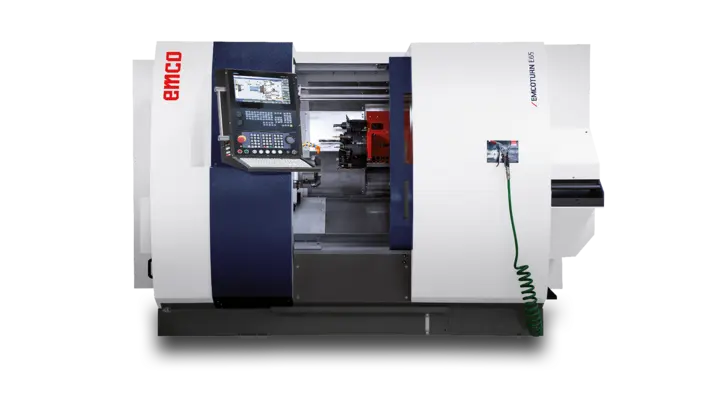

New EMCO EMCOTURN E65 | Lathe - 2-axis

Have one to sell?
(800) 538-7206
jksales@Joneskinden.com
ConditionNew
Have one to sell?

Documents (3)

Turning_Center_EMCOTURN_E65.pdf
Case-Study-universal-turning-centre-EMCOTURN_E65-Propart.pdf
Uniwersalne_centrum_tokarskie_EMCOTURN_E65_PL.pdf

Overview

Type:
Lathe - 2-axis
Manufacturer:
EMCO
Model:
EMCOTURN E65
Condition:
Build To Order
Status:
For Sale
Travel X/Y/Z210/+/-40/610210/+/-40/610
Bar Diameter65 (90)65 (90)
Max Turning Diameter500.0500.0
Distance between Centers682.0682.0
Swing over bed610.0610.0
Rapids (X/Y/Z)30/15/3030/15/30
Main Spindle - Max Speed5000 (3500) rpm5000 (3500) rpm
Main Spindle - Max torque305 Nm305 Nm
Main Spindle - Max Power22kW22kW
Connection - 1VDI 30/40VDI 30/40
Number of tools12.012.0
Live Tools12.012.0
RPM - 15000.05000.0
Power - 16.7kW6.7kW
Tail Stock availableYesYes
Counter Spindle - Max Speed5000rpm5000rpm
Counter Spindle - Max Torque25 Nm25 Nm
Counter Spindle - Max Power16.5 kW16.5 kW

Documents (3)

Turning_Center_EMCOTURN_E65.pdf
Case-Study-universal-turning-centre-EMCOTURN_E65-Propart.pdf
Uniwersalne_centrum_tokarskie_EMCOTURN_E65_PL.pdf

Overview

Type:
Lathe - 2-axis
Manufacturer:
EMCO
Model:
EMCOTURN E65
Condition:
Build To Order
Status:
For Sale

Specifications

Imperial

Travel X/Y/Z210/+/-40/610
Bar Diameter65 (90)
Max Turning Diameter500.0
Distance between Centers682.0
Swing over bed610.0
Rapids (X/Y/Z)30/15/30
Main Spindle - Max Speed5000 (3500) rpm
Main Spindle - Max torque305 Nm
Main Spindle - Max Power22kW
Connection - 1VDI 30/40
Number of tools12.0
Live Tools12.0
RPM - 15000.0
Power - 16.7kW
Tail Stock availableYes
Counter Spindle - Max Speed5000rpm
Counter Spindle - Max Torque25 Nm
Counter Spindle - Max Power16.5 kW
