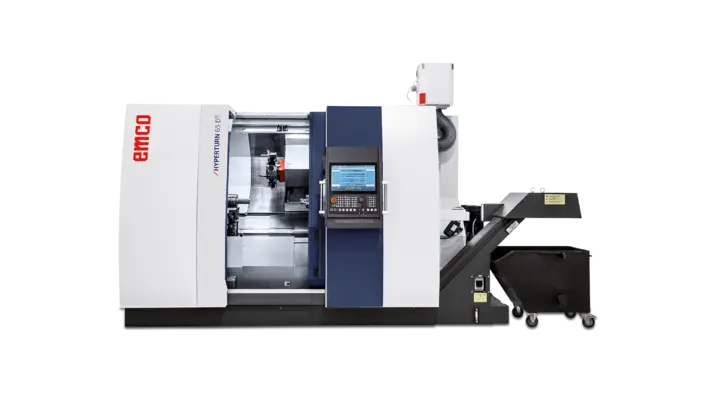

New EMCO HYPERTURN 65 TWIN TURRET | Lathe - Multi Turret

Have one to sell?
(800) 538-7206
jksales@Joneskinden.com
ConditionNew
Have one to sell?

Documents (2)

CNC_Dreh_Fraeszentrum_HT_65_DT_TT_SEO.pdf
EMCONNECT_Steuerzentrale.pdf

Overview

Type:
Lathe - Multi Turret
Manufacturer:
EMCO
Model:
HYPERTURN 65 TWIN TURRET
Condition:
Build To Order
Status:
For Sale
Travel X/Y/Z260/100/800260/100/800
Bar Diameter65 (76.2/95)65 (76.2/95)
Max Turning Diameter500.0500.0
Distance between Centers1050 / 13001050 / 1300
Swing over bed660.0660.0
Rapids (X/Y/Z)30/12/3030/12/30
Main Spindle - Max Speed5000 rpm5000 rpm
Main Spindle - Max torque29 (37) kW29 (37) kW
Main Spindle - Max Power250/360 Nm250/360 Nm
Connection - 1VDI 30/40VDI 30/40
Number of tools2 x 122 x 12
Live Tools2 x 122 x 12
RPM - 15000.05000.0
Power - 16.7 kW6.7 kW
Counter Spindle - Max Speed5000.05000.0
Counter Spindle - Max Torque250 Nm250 Nm
Counter Spindle - Max Power29 kW29 kW
Tail Stock availableyesyes
