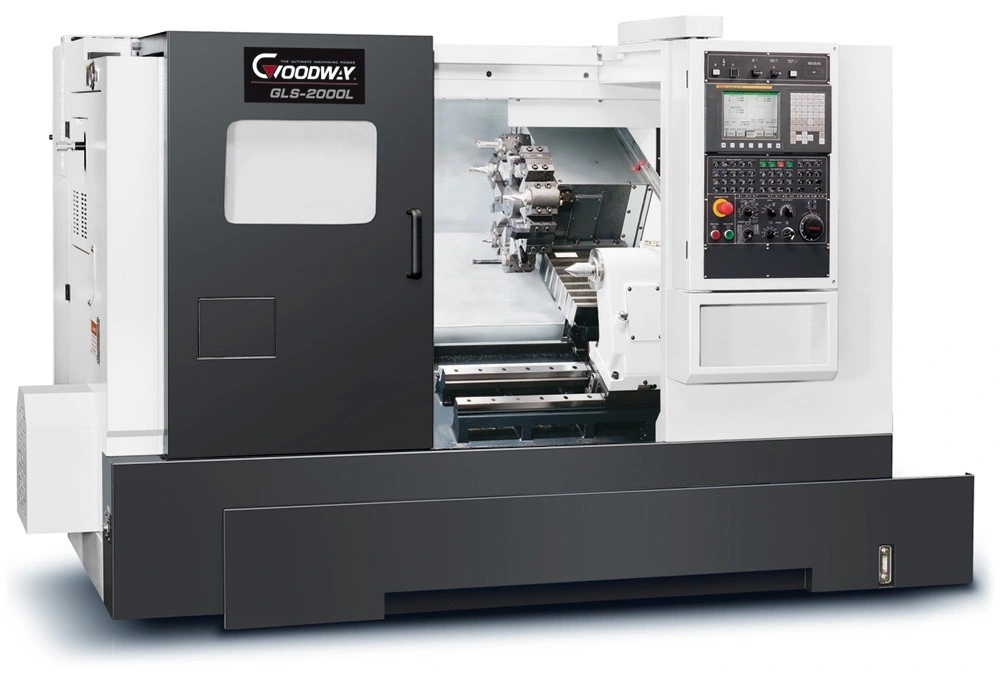

New YAMA SEIKI GLS-2000LYS | Lathe - Multi Turret
Have one to sell?
ConditionNew
New
YAMA SEIKI GLS-2000LYS used multi-turret lathe, swing 22", machining length 12.9", 8" chuck, bar capacity 2", 15.0 power, max RPM 4200, turning diameter 16.9". Perfect for versatile, high-performance machining needs.
PERFORMANCE + BAR FEED PACKAGE, 0i-TF PLUS Control, 2-Speed Motor Configuration, 2.55" Bar
Capacity, Renishaw HPRA Tool Setter for Main Spindle, Sub-Spindle, Chip Conveyor with 47" Discharge Height,
Grundfos 132 PSI High Pressure Coolant Pump, Oil Skimmer, Tool Load Monitoring System, 4 Live Tool Holders,
Bar Feeder Interface, Parts Catcher & External Parts Conveyor; UPGRADED: 15" IHMI LCD ($3,800), 12/24
Station Live Turret($2,250),Coolant thru Sub Spindle($4,875); Air Blow for Sub Spindle($800); Coolant
Pistol($800); SMART CHUCK SENSOR for Main & Sub-Spindle($1,900); Renishaw HPMA tool setter for Main &
Sub spindle ($3,000)
1. Fanuc 0i-TF PLUS Control with 10.4" Color LCD
2. Fanuc Alpha Spindle and Servo Drives
3. Fanuc AC 15 HP (Cont.), 20 HP (30 min.), 25 HP (Peak) Dual Winding Spindle Motor
4. Single Spindle Speed Configuration
5. Direct Belt Driven Spindle
6. Max Turning Length:
GLS-2000L (MS/YS): 530 mm (20.87”) (Base on the 8” chuck)
7. Main Spindle RPM
GLS-2000L (MS/YS): 20 ~ 4,500 RPM
8. Main Spindle Chuck (Including One Set of Soft Jaws):
GLS-2000L (MS/YS) – 8 inch 3-Jaw Through-Hole (65 mm) BIG-BORE Power Chuck
9. 12 Station 12 Live Servo Indexing Turret (ER-25) With 1” OD and 1-1/2” ID Tooling Shank
10. Full CS Axis Control on Main and Sub Spindle with Disk Brake
11. Sub Spindle RPM: 6,000 RPM Single Spindle Speed Configuration
12. Sub Spindle Chuck (Including One Set of Soft Jaws): Taiwan-Made 5 inch 3-Jaw Power Chuck
13. Pneumatic Sub Spindle Parts Ejector
14. Coolant Flush for Sub Spindle Slide Way Cover
15. X/Z Axis Fanuc AC 4.0 HP Servo Motor with Absolute Encoder
16. Y Axis travel 35 mm with Fanuc AC 2.2 HP Servo Motor [Y Model only]
17. Guide Way: Linear Guide Ways
18. Grundfos 94 PSI High Pressure Coolant Pump (MTH 2-50/5) with Roll-Out Coolant Tank
19. Chip Pan
20. Operation and Maintenance Manuals, Parts List, Electrical Drawings, and Factory Test Report
21. Three Color Operation Status Signal Light Tower
22. Tool Box with Emergency Maintenance Electrical Part Package
23. Standard Tool Holder and Sleeves Package
24. 0 Degree Live Tool Holders (Collet: ER-25) x 2
25. 90 Degree Live Tool Holders (Collet: ER-25) x 2
26. Safety Features: Fully Enclosed Guarding, Door Interlock, Hydraulic Pressure Safety Switch, Program Protect,
Chuck Clamp/Unclamp Confirmation
PERFORMANCE PACKAGE INCLUDES:
- SPINDLE ORIENTATION - 1 DEGREE INDEXING
- USER DEFINABLE MACRO
- TAILSTOCK WITH PROGRAMMABLE Non-Rotating QUILL (MT#4) *(not applicable for sub-spindle equipped machines )
- 3 COLOR TOWER SIGNAL
- UPGRADE CHIP PAN TO 47” SIDE DISCHARGE CHIP CONVEYOR
- OIL SKIMMER
- RENISHAW (HPRA) REMOVABLE TOOL SETTER FOR MAIN SPINDLE
- UPGRADE TO 132 PSI HIGH PRESSURE COOLANT PUMP (MTH-2/70)
- 2-SPEED SPINDLE MOTOR CONFIGURATION
BAR FEED AUTOMATION PACKAGE INCLUDES:
- BAR FEEDER INTERFACE FOR YAMA SEIKI BAR FEEDER
- PARTS CATCHER WITH EXTERNAL STYLE PARTS CONVEYOR
- TOOL LOAD MONITORING FUNCTION & TOOL LIFE MANAGEMENT
MACHINE INCLUDES THE FOLLOWING:
15" IHMI LCD
12/24 Station Live Turret
Coolant thru Sub Spindle
Air Blow for Sub Spindle
Coolant Pistol
SMART CHUCK SENSOR for Main & Sub-Spindle
Renishaw HPMA tool setter for Main & Sub spindle
