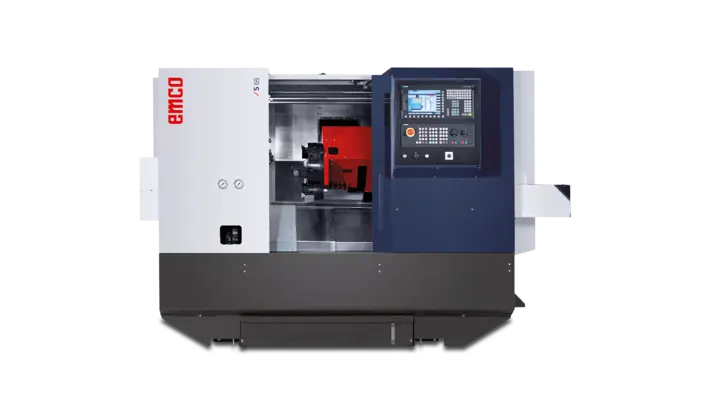

New EMCO CNC-LATHE S65 | Lathe - 2-axis
Have one to sell?
$145,000.00 USD
ConditionNew
4 available
New

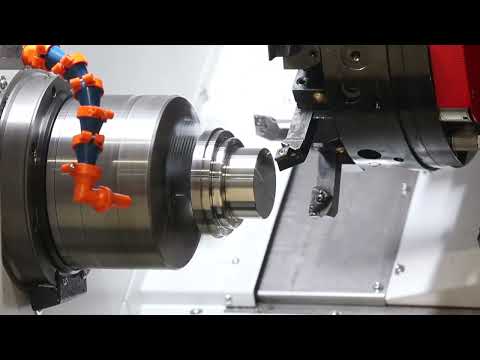

Turning made Easy! The S-65 Lathe from EMCO is a beast at producing simple to medium complexity turned pieces. This 2-Axis Lathe includes VDI-30 Live Tools as standard with a high resolution C-Axis for precision milling and concentricity! This machine includes a built in part catcher and is already prepped for a bar feeder so you can get automation up and running quickly! Other highlights of this machine are as follows:
Solid Thermally stable base for consistent production
Powerful Siemens controller with ShopTurn for conversational programming
Standard Chip Conveyor included
Automatic Tailstock standard
210mm Chuck included with 3 sets of Jaws
Tooling Package including static and live tools included
Reach out to us today to get a quote on this machine!
Free fill up of Blaser Coolant and 50% off Kennametal Tooling offer from Jones Kinden included! Be sure to ask about an Edge Barfeeder or Royal Rotorack parts collector to complete your automation needs!
*Current Tariff’s on goods from Europe may effect pricing.
Travel in X/Y/Z 210/ - / 610 mm
Bar diameter ø 65 mm
Max. turning diameter ø 310 mm
Swing over bed ø 540 mm
Distance between centers Spindle Nose-Center 680 mm
Number of tools 12
Driven tools 12
Max. speed 5000 rpm
Max. drive power 5 kW
Max. torque 20 Nm
MAIN SPINDLE
Max. speed 4200 rpm
Max. drive power 18 kW
Max. torque 192 Nm
Includes:
• 12-station tool turret VDI 30 axial
with bi-directional logic for 12
driven tools!
Max. power: 5 kW
Constant torque of 20 Nm
Speed range: 0-5000 rpm
• C-axis for the spindle
• Mechanical spindle brake (0,01° inc.)
• TRANSMIT software for simple
C-axis programming
• Programmable Tailstock
Hydraulic forced, free programmable,
rigid construction without quill,
max. force 8000N for life-centre MT 4
• Headstock size 65 with spindle nose
A2-6 (DIN 55026)
• Through-hole clamping cylinder
• Sinumerik 828D incl. ShopTurn
- SHOPTURN dialog programming
- USB-port
- Ethernet interface
- TFT color monitor 10,4"
- 3D simulation
- TRANSMIT for simple C-axis
programming
- etc.
• Machine lamp
• Coolant system
• Hydraulic aggregate
• Interface for chip conveyor
• Documentation
PARTS CATCHER – E65
BARLOADER INTERFACE
AUTOMATIC TOOL SETTER
CHIP CONVEYOR
HIGH PRESSURE COOLANT PUMP 10 BAR
AIR CONDITIONING FOR ELECTRICAL CABINET
3 JAW HYDRAULIC CHUCK
1 SET OF HARD JAWS, 2 SETS OF SOFT JAWS
LIVE CENTER 60 DEG
TOOL HOLDER PACKAGE – VDI30
STATIONARY AND DRIVEN TOOLS
Tool holder package consisting of:
2x - RADIAL tool holder M4 (R3Z350)
1x - RADIAL tool holder M3 (R3Z360)
2x - Collet holder ESX 25 (W1Z480)
1x - Carbide insert drill holder Ø25
(R3Z430)
1x - Boring bar holder Ø16 (R3Z300W)
1x - Angular milling holder 90°(R2Z780)
1x - Milling holder straight (440420W)
1x - Set of hand-tools
SHIPPING AND 4 DAYS OF STARTUP/BASIC TRAINING INCLUDED
