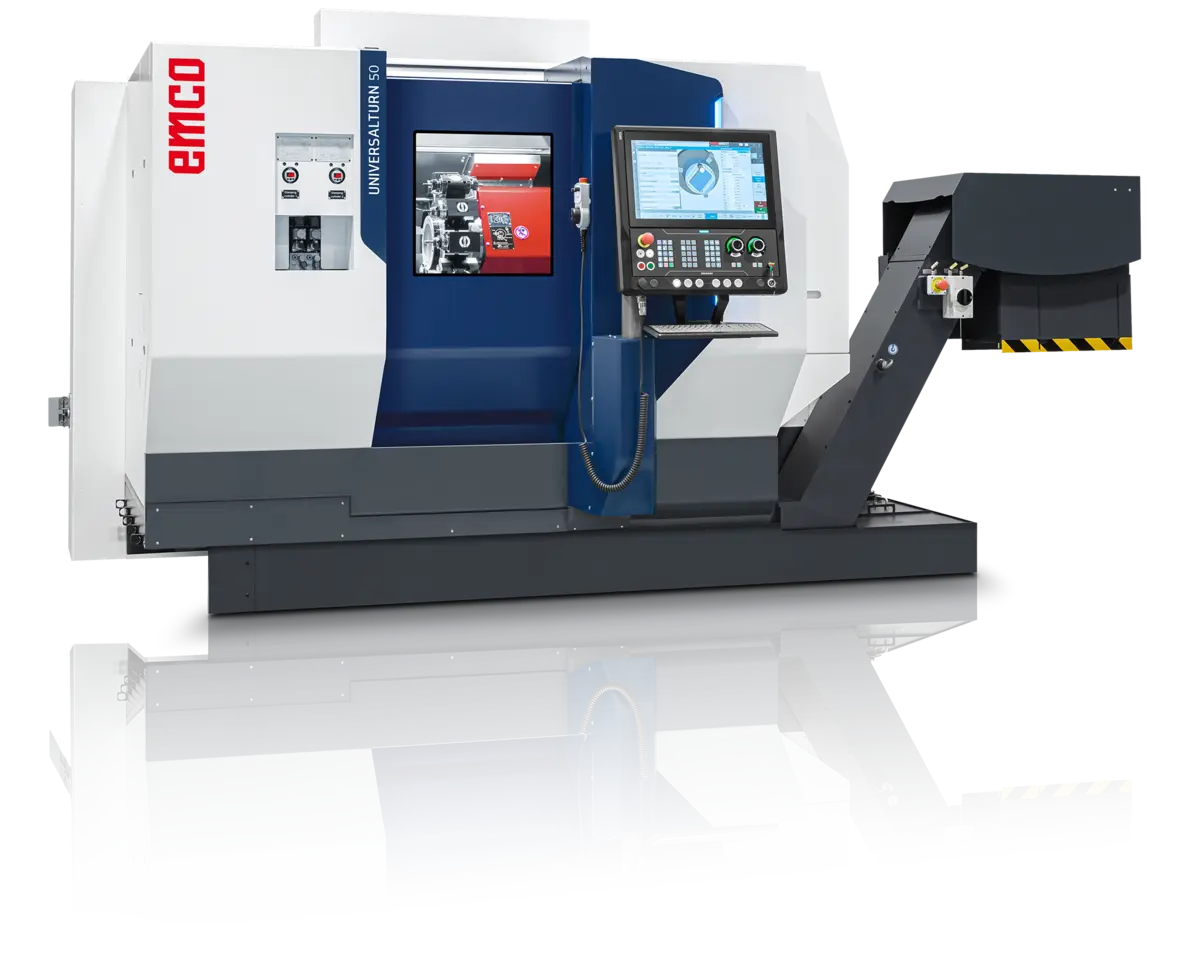

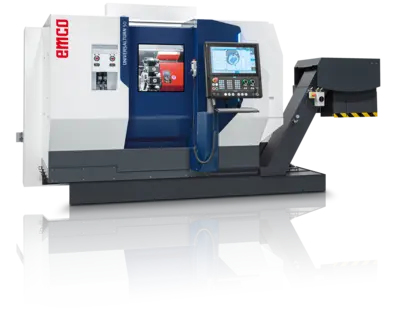

EMCO UniversalTurn 50 SMY
Have one to sell?
ConditionNew
New
With the new UNIVERSALTURN 50, EMCO sets the next milestone in complete machining of bars and chuck parts. Developed for maximum precision, dynamics and process reliability, the compact high-performance turning center offers everything that modern manufacturing centers require: powerful drive
systems, an integrated Y-axis for extended milling and flexible automation concepts.
Whether complex turned and milled parts for mechanical engineering, the automotive industry, medical technology or defence the UNIVERSALTURN 50 impresses with its outstanding rigidity, intuitive operation and scalable equipment.
Thanks to proven EMCO technologies combined with forwardlooking developments, users benefit from maximum efficiency, high cost-effectiveness and the highest level of manufacturing quality.
Experience a new dimension in precision and productivity made by EMCO.
Main spindle (direct drive):
# Connection A2-5" (DIN 55026)
# Max. bar capacity: ΓΈ50 mm
# Max. drive power: 21 kW
# Max. torque: 147 Nm
# Max. speed: 6200 rpm (depending on clamping device)
Counter spindle (direct drive):
# Connection A2-5" (DIN 55026)
# Max. drive power: 21 kW
# Max. torque: 147 Nm
# Max. speed: 6200 rpm (depending on clamping device)
Tool system:
12-station radial turret including powerful direct drive and stable, repeatable BMT45P interface.
# Max. power: 8.8 kW
# Max. torque: 21 Nm
# Max. speed: 12,000 rpm
# C-axis on the main and counter spindle
Y-axis:
# Travel range: +40 / -40 mm
# Rapid traverse speed: 10 m/min
Includes:
# Hollow clamping cylinder incl. draw tube
# Mechanical holding brake (main/counter spindle)
# Sinumerik ONE control system
o EMCONNECT # APP-based user interface
o 22" multi-touch display / IPC with 240 GB
o SHOPTURN dialog programming
o 3D simulation and monitoring for simulation
o Residual material detection
o External machining
o CAD reader (DXF import)
o TRANSMIT and TRACYL
o USB interface / network drive (Ethernet)
o PC keyboard including HMI hotkeys, and much more.
# LED machine room light
# Coolant system incl. coolant pump (8 bar)
# Feed flushing (additional pump 3.5 bar)
# Parts ejector and flushing through the counter spindle
# Air gun with spiral hose
# Hydraulic unit
# Preparation for mechanical/electrical oil mist extraction
# Interface for chip conveyor
# Vibration-absorbing leveling shoes
# High-performance anchor bolts
# Documentation/CE certificate
